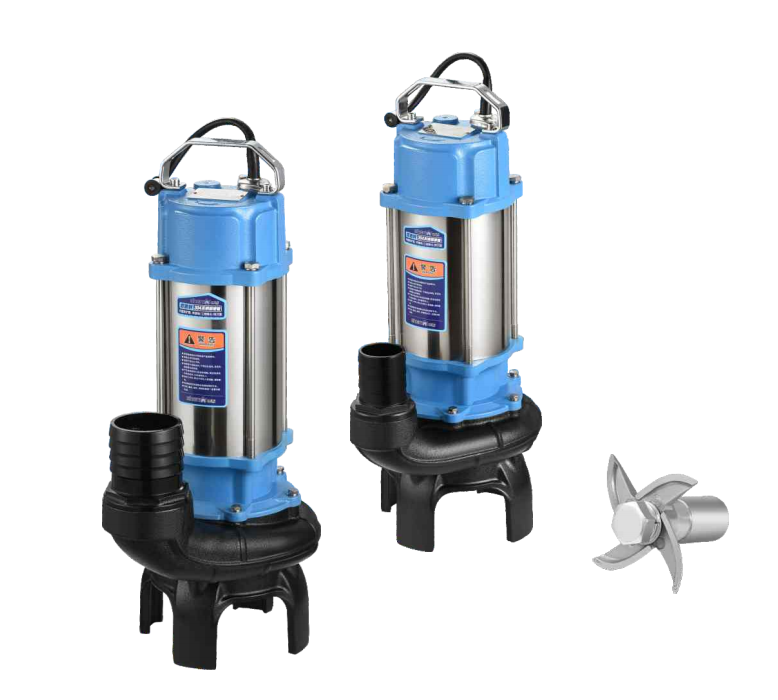

WQD-JY Stainless Steel Stirred Sewage Slurry Pump

Color:Choose freely

Min Order:100 pcs

The voltage and stator size can be made according to your needs
Availability:
Quantity:
Inquire Add to Basket

Applications:
Stainless steel slurry pump is a type of pump used for treating sewage and mud, with stirring function, which can effectively mix and transport mud in sewage.
Usually made of stainless steel materialto ensure corrosion resistance and durability. They are widely used in industries such as municipal, infrastructure, chemical, printing and dyeing, pharmaceuticals, shipbuilding, casting, and food.

Motor:

Two-pole induction motor(n=2850 r.p.m)

Insulation Class B

Protection IP68

Continuous service S1

Thermal protector for single phase

Single-phase 220V/50Hz,60Hz if request

Three-phase 3700V/50Hz,60Hz if request

Operating conditions:

5m maximum immersion depth

Liquid temperature up to 35℃

Maximum ambient temperature 40℃

Pump body:Cast iron

Motor housing:AISI304 SS

Impeller:Cast iron

Motor shaft:AISI304SS

Mechanical seal:SIC-SIC/Ceramic-Graphite

Cable:7m power cable with plug
