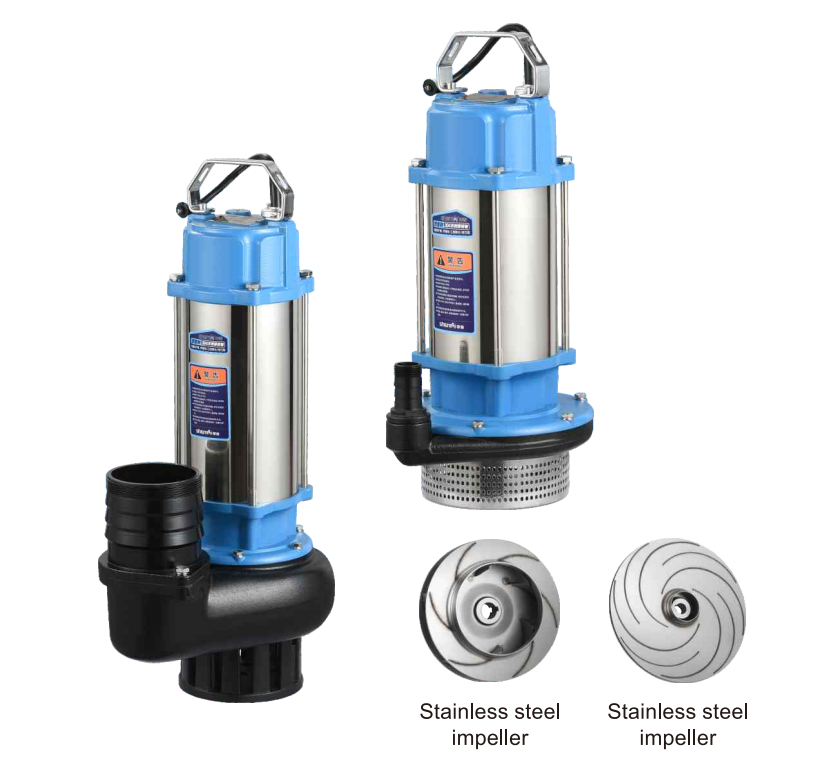

QDX-S Stainless Steel Submersibl Pump

Applications:

Corrosion resistance: Stainless steel material has excellent corrosion resistance and can resist the erosionof various chemical substances. It is suitable for places with poor water quality and corrosive substances, such as chemical,pharmaceutical, metallurgical and other industries.

Motor:

Two-pole induction motor(n=2850 r.p.m)

Insulation Class F

ProtectionIP68

Continuous service S1

Thermal protector

Single-phase 220V/50Hz,60Hz if request

Operating conditions:

5m maximum xmmersion depth

Liquid temperature up to 35℃

Maximum ambient temperature 40℃

Pump body:Cast iron

Motor housing:Aluminum

Impeller:Aluminum

Motor shaft:Carbon steel,AlSI304 SS if request

Mechanical seal:Ceramic/Graphite

Bearings:

6201RZ/6201RZ(6202 RZ)(0.5HP)

6202RZ/6203RZ(0.75HP&1HP)

6203RZ/6203RZ(1.5HP)

Cable:7m power cable with plug
