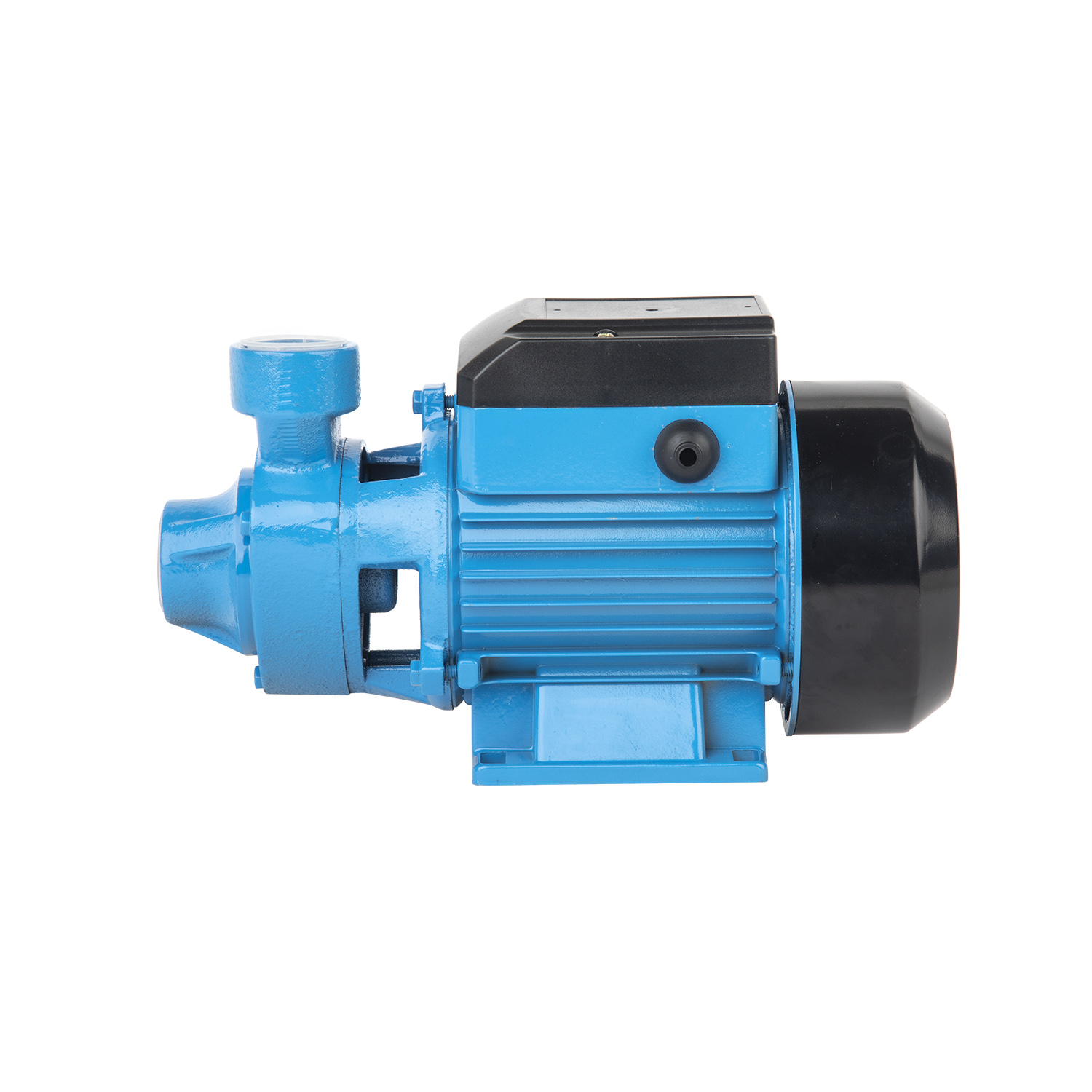

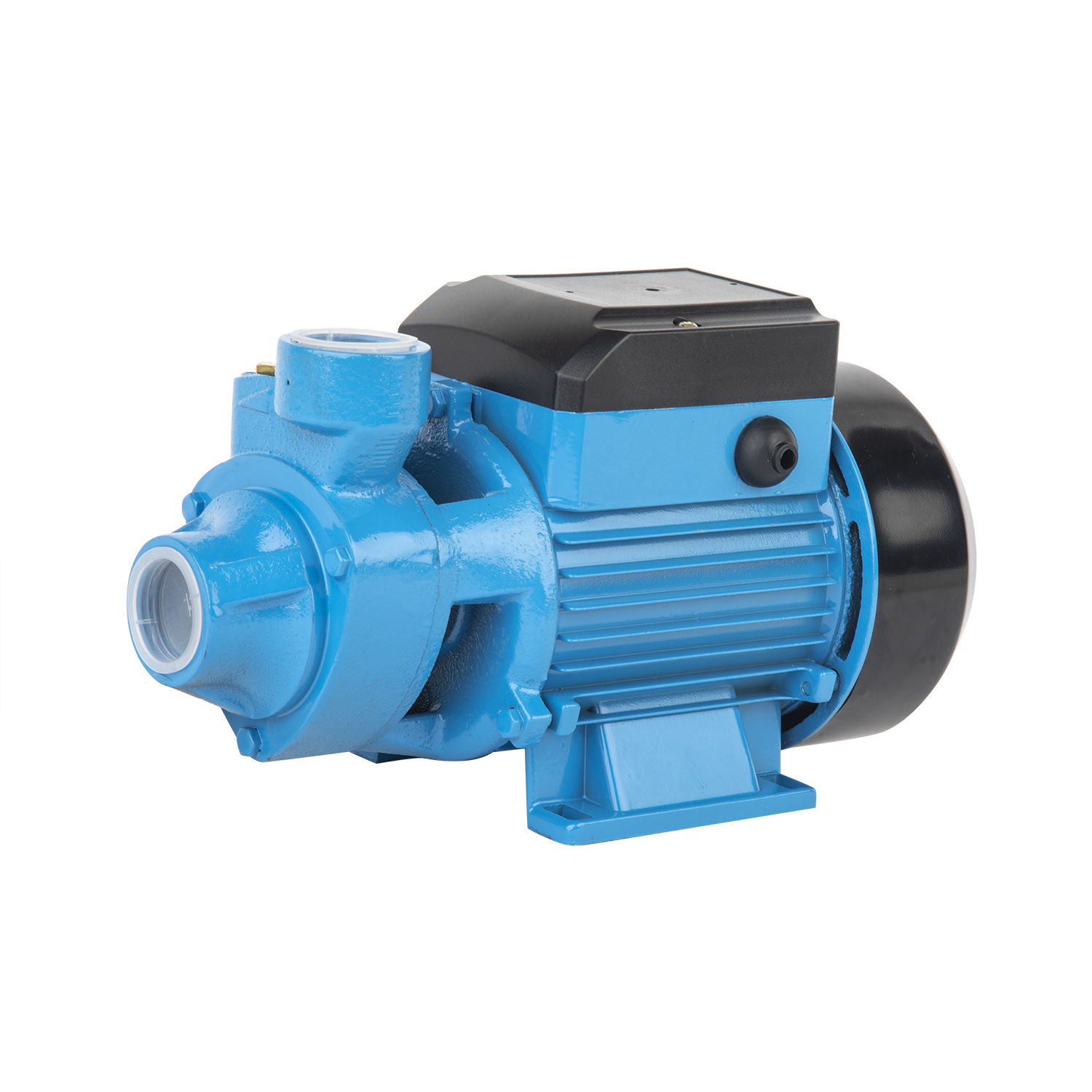

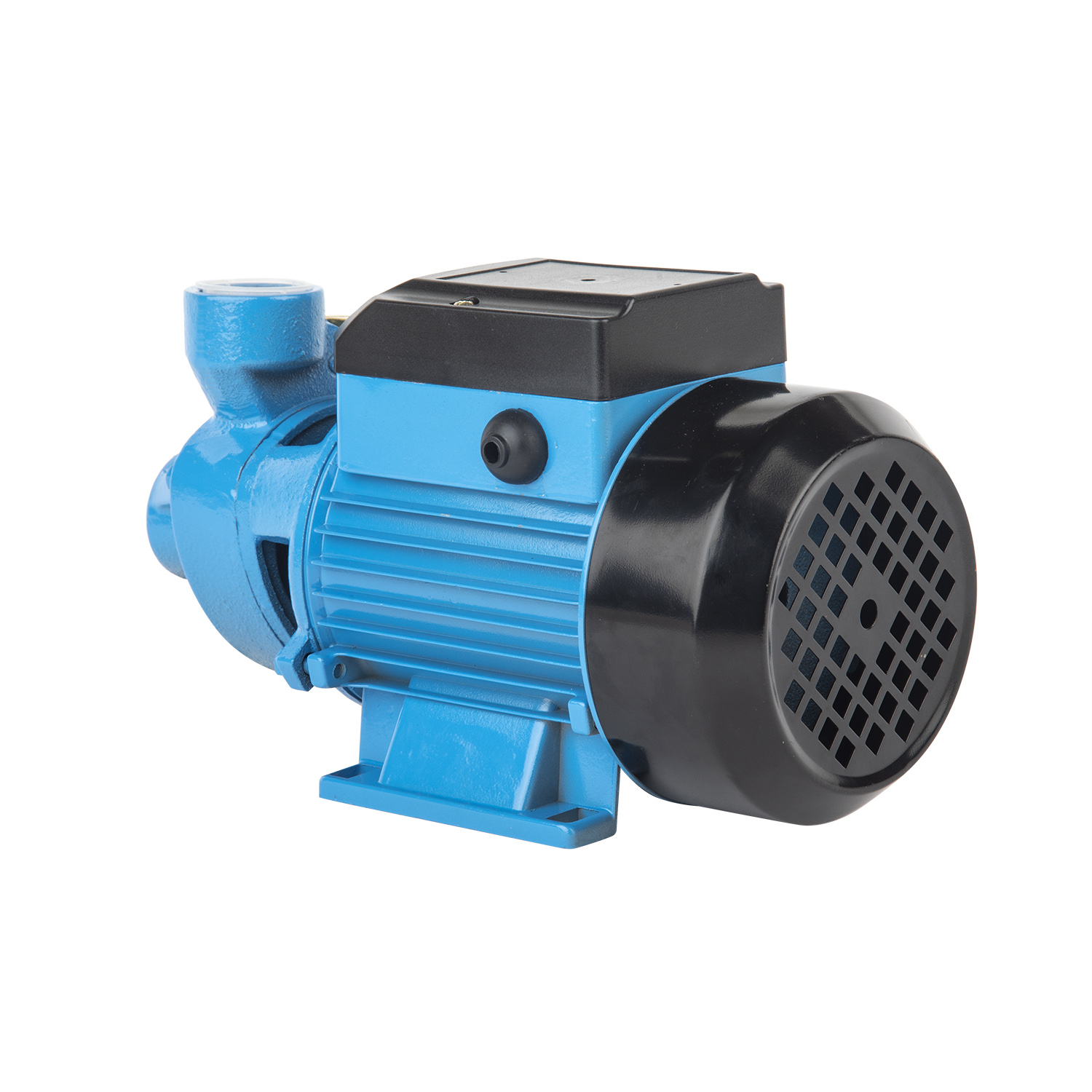

QB series pump

Color:Choose freely

Min Order:100 pcs

The voltage and stator size can be made according to your needs
Availability:
Quantity:
Inquire Add to Basket

Applications:
Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.
They are easy to use and are economical,they are ideal for domestic use and in particular for distributing water in combination with small pressure sets and for the irrigation of gardens and allotments.
The pump should be installed in an enclosed environment,or at least sheltered from inclement weather.

Motor:

Two-pole induction motor(n=2850 r.p.m)
Insulation Class F
Protection IP44
Continuous service S1
Thermal protector
Single-phase 220V/50Hz,60Hz if request

Operating conditions:

Liquid temperature up to 60°C
Ambient temperature up to 40°C

Total suction lift up to 8m

Pump body:Cast iron,with brass/AISI304 SS insert if request

Pump support:Cast iron,with brass/AISI304SS insert if request

Motor housing:Aluminum

Impeller:Brass

Motor shaft:Carbon steel,AlSI304 SS if request

Mechanical seal:Ceramic/Graphite
