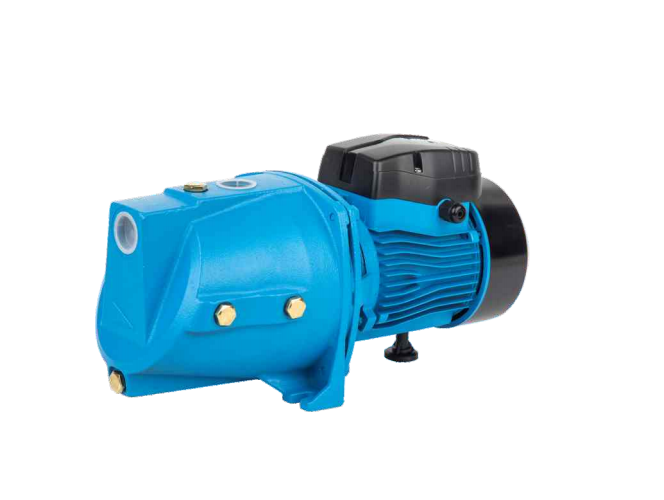

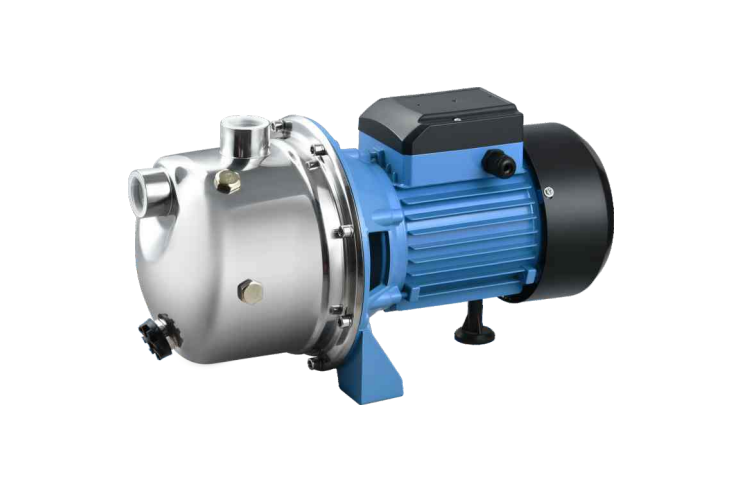

The self-priming jet pumps are designed to pump water even in cases where air is present.As a result of their reliability and the fact that they are easy to use,and recommended for use in domestic applications such as the distribution of water in combination with small or medium sized pressure sets,and for the irrigation of gardens and allotments,etc.
Motor:
Two-pole induction motor(n=2850 r.p.m)
Insulation Class F
Protection IP44
Continuous service S1
Single-phase 220V/50Hz,60Hz if request
Three-phase 380V/50Hz,60Hz if request
Operating conditions:
Ambient temperature up to 40°C
Total suction lift up to 9m
Pump body:Cast iron
Pump support:Cast iron
Motor housing:Aluminum
Impeller:Brass or PPO plastic
Diffuser:PPO plastic
Motor shaft:Carbon steel,AlSI304 SS if request
Mechanical seal:Ceramic/Graphite
The self-priming jet pumps are designed to pump water even in cases where air is present.As a result of their reliability and the fact that they are easy to use,and recommended for use in domestic applications such as the distribution of water in combination with small or medium sized pressure sets,and for the irrigation of gardens and allotments,etc.
Motor:
Two-pole induction motor(n=2850 r.p.m)
Insulation Class F
Protection IP44
Continuous service S1
Single-phase 220V/50Hz,60Hz if request
Three-phase 380V/50Hz,60Hz if request
Operating conditions:
Ambient temperature up to 40°C
Total suction lift up to 9m
Pump body:Cast iron
Pump support:Cast iron
Motor housing:Aluminum
Impeller:Brass or PPO plastic
Diffuser:PPO plastic
Motor shaft:Carbon steel,AlSI304 SS if request
Mechanical seal:Ceramic/Graphite
