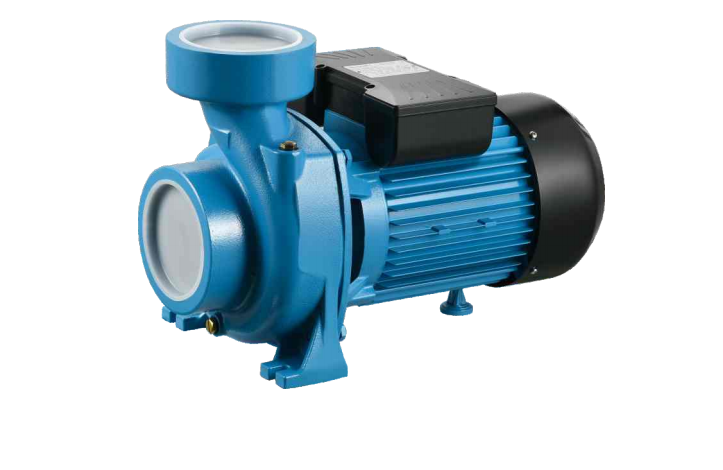

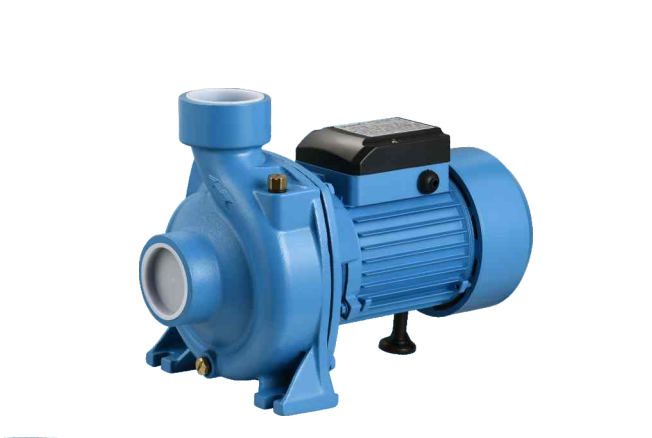

ACM Centrifugal Pump

Color:Choose freely

Min Order:100 pcs

The voltage and stator size can be made according to your needs

Availability:

Quantity:



Inquire Add to Basket

Product Description

Applications:

Suitable for use with cleanwater and liquids that are not chemically aggressivetowards the materials from which the pump is made.

As a result of their reliability and the fact that they are easy to use,these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets,for transferring liquids and for the irrigation of gardens and allotments.

The pump should be installed in an enclosed environment,or at least sheltered from inclement weather.

Motor:

Two-pole induction motor(n=2850 r.p.m)

Insulation Class F

Protection IP44

Continuous service S1

Thermal protector

Single-phase 220V/50Hz,60Hz if request

Three-phase 380V/50Hz,60Hz if request

Operating conditions:

Liquid temperature up to 60°C

Ambient temperature up to 40°C

Total suction lift up to 8m

Pump body:Cast iron

Pump support:Cast iron

Motor housing:Aluminum

Impeller:Brass

Motor shaft:Carbon steel,AlSI304 SS if request

Mechanical seal:Ceramic/Graphite(0.5HP),SIC/Graphite

Centrifugal Pump
